Universal Frame System · S-04
Power Seeder Shaft
Fine-turf seeding

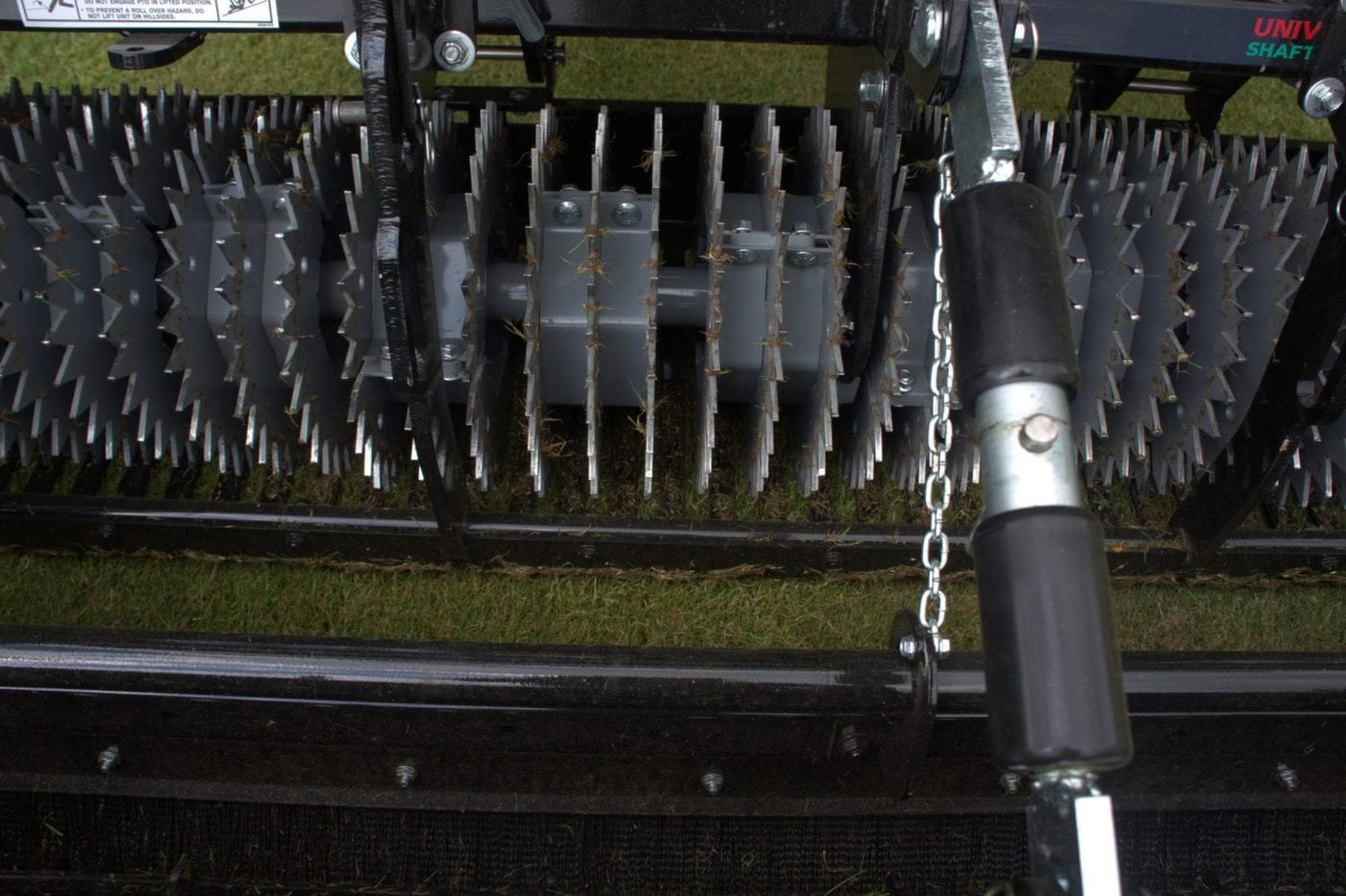

The Power Seeder Shaft is designed for fine manicured turf on golf course tees, greens, and fairways. It operates like a slicer but needs less horsepower, using clusters of slicer blades on a vibrating rotor — so it can seed the shallowest-rooted areas without lifting or tearing the existing turf, and the newly seeded surface recovers faster.
[ SPECIFICATION ]
Spec sheet
| Action | Slice + seed |
|---|---|
| Aeration density | 55 holes per sq ft |
| Vibration depth | 1½ in |
| Vertical travel | 1¼ in |
| Rotor | Replaceable shells · 16 / 24 / 32 by frame |
| Shaft weight | 225–350 lb by frame |
| Best for | Tees · greens · fairways |
Specs as published by 1st Products; ranges span the UA40 / UA60 / UA80 frame widths. Verify final configuration with your dealer.
