AGRI-vator
Primary tillage, reimagined
The AGRI-vator relieves compaction and aerates soil to support up to 30% faster sod re-growth. Vibratory tines break up hardpan without inverting the soil, preserving surface residue for erosion control and moisture retention. Loosen, level, and prepare the seedbed in one pass to save fuel and time. Available in 6-, 8-, and 12-foot widths, with an optional seed box and spiker roller.
Configurations

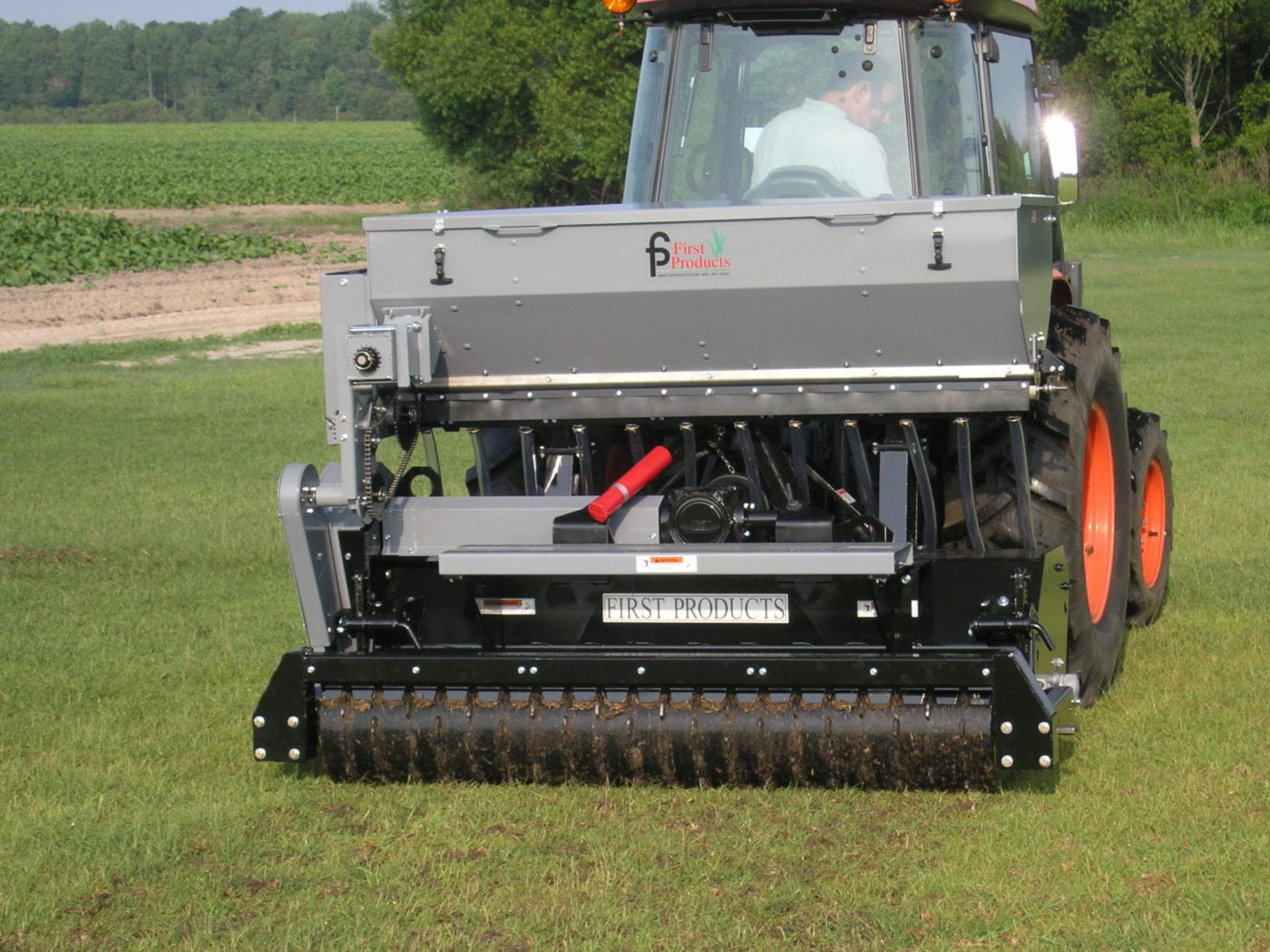

AG72
Facilitates seed growth and helps you get the results you want for your farm. Break apart the soil without doing damage to the surface turf.
| Working width | 6 ft (72 in) |
|---|---|
| Weight | 1,630 lbs |
| Center Drive Gearbox | 1:1.5 Tee |
| End Drive | 3 Cx Belts (Left End) |
| Tine Vibration Frequency | @ 540 PTO RPM = 1,026 Cycles/Min |
| Side-to-Side Tine Travel | 2 1/4 in |
| Vibrating Depth | 6 in |
| Aeration Density | 5 Holes per sq ft |
| Tines | 3/4 x 6 in Forged and Hardened (144) |
| Rotor Bearings | Double Sealed Tapered Roller |
| Drive Line | 1 3/8 in Spline w/ Safety Shield |
| Finish | Black Acrylic w/ Grey Trim |
| Tractor HP required | 45, 60, or 80 |

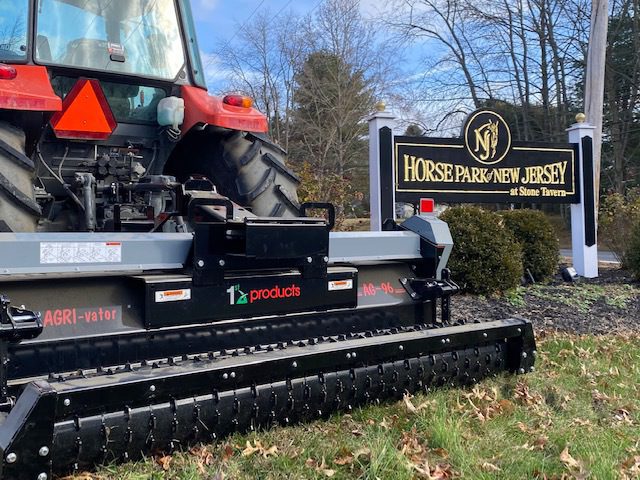

AG96
Facilitates seed growth and helps you get the results you want for your farm. Break apart the soil without doing damage to the surface turf.
| Working width | 8 ft (96 in) |
|---|---|
| Weight | 2,045 lbs |
| Center Drive Gearbox | 1:1.5 Tee |
| End Drive | 2 Cx Belts (Left End) |
| Tine Vibration Frequency | @ 540 PTO RPM = 1,026 Cycles/Min |
| Side-to-Side Tine Travel | 2 1/4 in |
| Vibrating Depth | 6 in |
| Aeration Density | 5 Holes per sq ft |
| Tines | 3/4 x 6 in Forged and Hardened (144) |
| Rotor Bearings | Double Sealed Tapered Roller |
| Drive Line | 1 3/8 in Spline w/ Safety Shield |
| Finish | Black Acrylic w/ Grey Trim |
| Tractor HP required | 45, 60, or 80 |

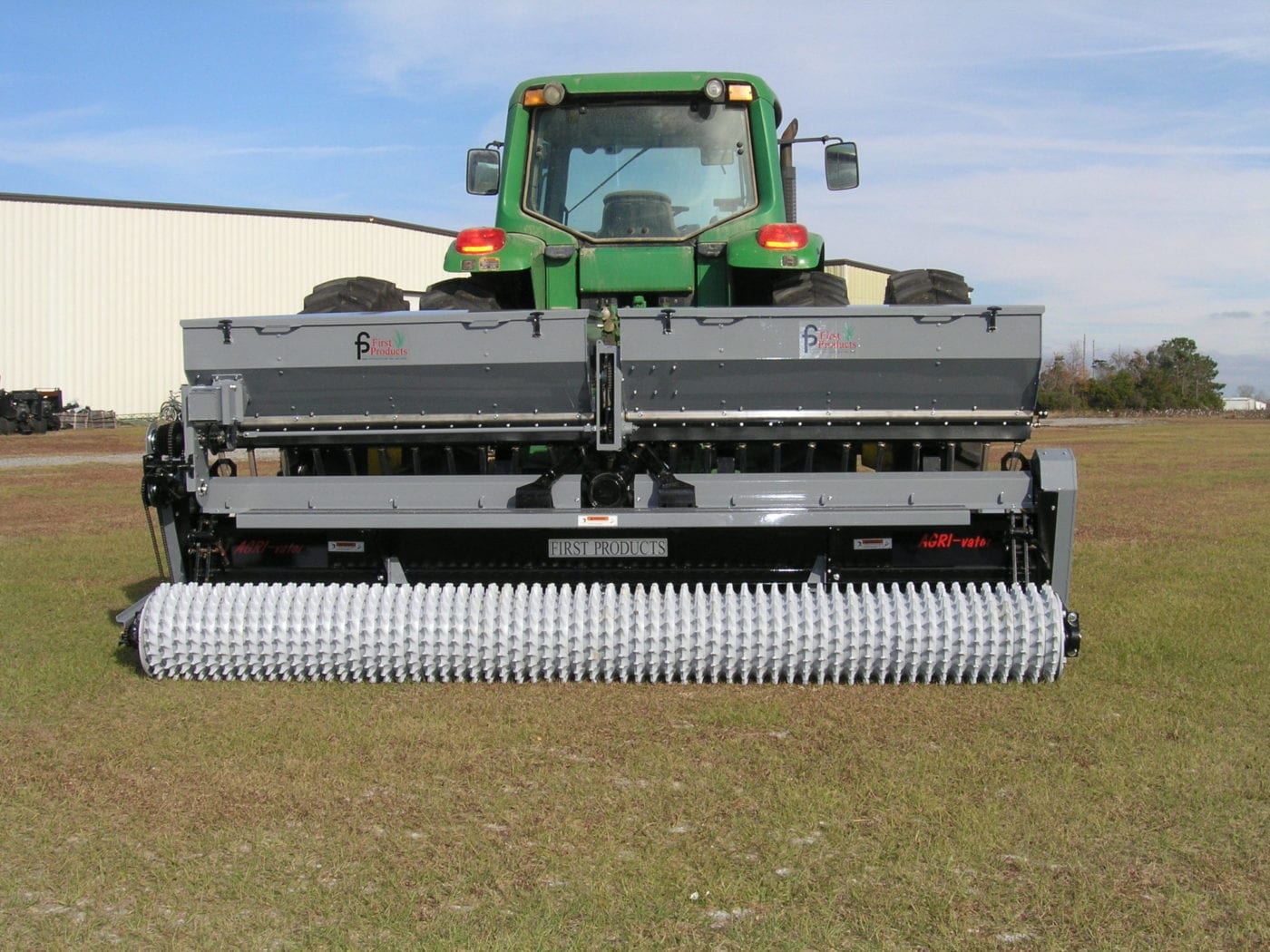

AG144
Facilitates seed growth and helps you get the results you want for your farm. Break apart the soil without doing damage to the surface turf.
| Working width | 12 ft (144 in) |
|---|---|
| Weight | 2,825 lbs |
| Center Drive Gearbox | 1:1.5 Tee |
| End Drive | 3 Cx Belts (Left End) |
| Tine Vibration Frequency | @ 540 PTO RPM = 1,026 Cycles/Min |
| Side-to-Side Tine Travel | 2 1/4 in |
| Vibrating Depth | 6 in |
| Aeration Density | 5 Holes per sq ft |
| Tines | 3/4 x 6 in Forged and Hardened (144) |
| Rotor Bearings | Double Sealed Tapered Roller |
| Drive Line | 1 3/8 in Spline w/ Safety Shield |
| Finish | Black Acrylic w/ Grey Trim |
| Tractor HP required | 45, 60, or 80 |
Specs as published by 1st Products — confirm final configuration with your dealer.
In their words
Since implementing our new AGRI-vator we've seen clear evidence of faster re-establishment of Bermuda and Zoysias. This benefit isn't up for debate — our fields are measurably quicker to grow back in. I especially wish we had bought a machine years ago.
A major storm deposited a thick layer of silt and clay on four of our fairways. The AGRI-vator was instrumental in breaking up the silt layer and opening the soil so water could percolate to the root zone. Without it, we would still be dealing with muddy fairways.
When we use the AGRI-vator it makes the ground less compacted, which lets the root system on our sod grow back at a quicker rate. Quicker regrowth means more production and profit.
The durability of the machine is remarkable — we have used it over a 400-acre span with no issues, and replacing the tines was quick and easy. Ordering was simple with outstanding customer service and fast shipping. I would highly recommend the AGRI-vator to others.
