Round Module Spear
Round-module cotton handling

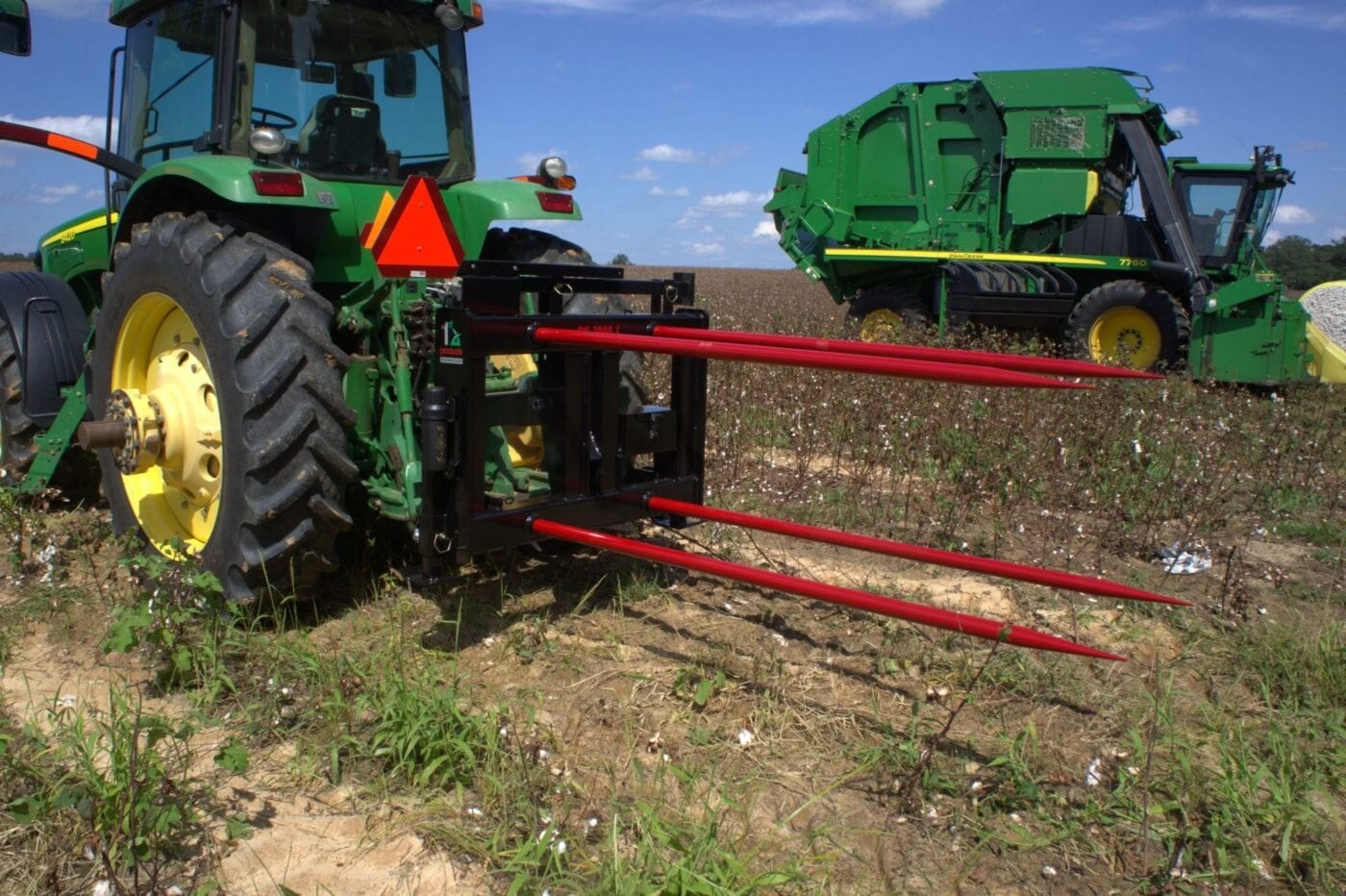

The CM7000 round-module spear systems move round cotton modules securely between field, yard, and gin. Every configuration lifts up to 7,000 lbs on hardened, 2¼-inch special-alloy steel spears, with engineered spear geometry that holds modules firmly during transport. Reinforced frames and heavy-duty hydraulics support season-long work, with loader and three-point mounting options and single- or double-module configurations.
[ MODELS ]
Configurations
CM7000-L
| Mount | 3-pt lift |
|---|---|
| Use | Field & gin staging |
| Length (without spears) | 33 in |
| Length (with spears) | 103 in |
| Width | 65 in |
| Height | 56 in (storage position) |
| Weight | 1,265 lb |
| Hitch | CAT III, IVN, or IV |
| Lifting capacity | 7,000 lb |
| Module clearance height | 30 in or higher (depending on tractor) |
| Spear | 2 1/4 in round special-alloy steel |
| 1/4 UNC standard bolt torque | 11 ft. lb. (14 N-m) |
| 5/16 UNC standard bolt torque | 21 ft. lb. (28 N-m) |
| 1/2 UNC standard bolt torque | 85 ft. lb. (120 N-m) |
CM7000-LD
| Mount | Loader / tele-handler |
|---|---|
| Length (without spears) | 33 in |
| Length (with spears) | 103 in |
| Width | 65 in |
| Height | 56 in (storage position) |
| Weight | 841 lb |
| Hitch | Mounting plate required |
| Lifting capacity | 7,000 lb |
| Spear | 2 1/4 in round special-alloy steel |
| 1/4 UNC standard bolt torque | 11 ft. lb. (14 N-m) |
| 5/16 UNC standard bolt torque | 21 ft. lb. (28 N-m) |
| 1/2 UNC standard bolt torque | 85 ft. lb. (120 N-m) |
CM7000-HL
| Type | High-lift — carries modules over stalks |
|---|---|
| Length (without spears) | 58 in |
| Length (with spears) | 146 in |
| Width | 74 in |
| Height | 58 in (storage position) |
| Weight | 2,891 lb |
| Hitch | CAT III, IVN, or IV |
| Hydraulic cylinder bore | 6 in |
| Hydraulic cylinder stroke | 20 in |
| Maximum working pressure | 3,000 psi |
| Lifting capacity | 7,000 lb |
| Module clearance height (legacy wording) | “60 in Lift Links @ 39 in or higher (depending on tractor)” |
| Spear | 2 1/4 in round special-alloy steel |
| 1/4 UNC standard bolt torque | 11 ft. lb. (14 N-m) |
| 5/16 UNC standard bolt torque | 21 ft. lb. (28 N-m) |
| 1/2 UNC standard bolt torque | 85 ft. lb. (120 N-m) |
Specs as published by 1st Products — confirm final configuration with your dealer.
